Wireless Radio Modems for GNSS - Sokkia Satelline-Easy Pro GNSS


Wireless Radio Modems for GNSS - Sokkia Satelline-Easy Pro GNSS

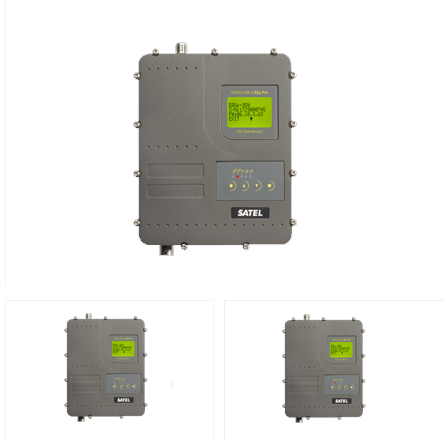

Nedo Corporation offers the Sokkia Satelline-Easy Pro GNSS, a powerful and versatile solution designed to enhance GNSS communication in surveying applications. The Satelline-Easy Pro GNSS provides reliable, long-range data transmission, making it ideal for precise positioning in remote or challenging environments. Equipped with advanced radio technology, it offers seamless connectivity between base stations and receivers, ensuring high-accuracy results in real-time. Its compact, rugged design allows it to withstand tough outdoor conditions, while its easy-to-use interface ensures smooth operation in the field. The Sokkia Satelline-Easy Pro GNSS is an essential tool for surveyors looking to improve the efficiency and reliability of their GNSS systems. With Nedo Corporation’s commitment to quality, the Satelline-Easy Pro GNSS stands out as a top choice for high-performance surveying solutions.


  • Frequency   :   403 - 473 MHz
  • Tuning Range   :   70 MHz
  • Channel Spacing   :   12.5 / 20 / 25 kHz (SW selectable)
  • Communication Mode   :   Half-Duplex
  • Carrier Power   :   10, 20, 25 or 35 W / 50 ohm (Default) 5, 10, 20 or 25 W / 50 ohm (Option *)
  • Sensitivity   :   -114 dBm (BER , 10 E-3) ***
  • Interface Connector   :   Waterproof IP67, 8-pin ODU
  • Data Speed of RS Interface   :   300 – 38400 bps
  • Data Speed of Radio Interface   :   19200 bps (25 kHz)
  • Data Format   :   Asynchronous RS-232
  • Antenna Connector   :   TNC, 50 ohm, female
  • Construction   :   Aluminium Enclosure
  • Size H x W x D   :   189 x 138 x 71 mm (with connectors)
  • Weight   :   1420 g
  • IP Classification   :   P67 (NEMA 6)

Sokkia Satelline

Data Sheet
