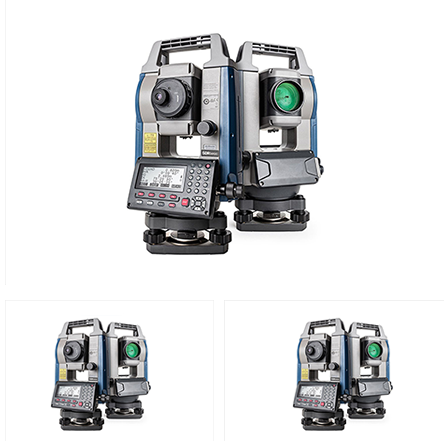

Reflectorless Total Station - Sokkia iM-52 Total Station


Reflectorless Total Station - Sokkia iM-52 Total Station


Nedo Corporation is a leading presenter of the Sokkia iM-52 Reflectorless Total Station, a highly accurate and reliable surveying instrument designed to meet the needs of professionals in land surveying, construction, and engineering. The iM-52 offers advanced reflectorless measurement technology, allowing for precise data collection over long distances without the need for a prism, making it ideal for challenging environments and hard-to-reach areas. With its user-friendly interface, high-speed measurements, and robust design, the Sokkia iM-52 ensures enhanced productivity, accuracy, and efficiency in the field. Whether you're working on large-scale projects or small surveys, Nedo’s Sokkia iM-52 Reflectorless Total Station is the perfect solution for professionals seeking dependable performance and cutting-edge technology.


  • Objective aperture   :   45mm (1.8in.)
  • Field of view   :   1°30' (26m/1,000m
  • Magnification / Resolving power   :   30x / 2.5"
  • Minimum Display   :   1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
  • Accuracy (ISO 17123-3:2001)   :   2"
  • Dual-axis compensator / Collimation compensation   :   Dual-axis liquid tilt sensor, working range: ±6'
  • Laser output   :   Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
  • Measuring time*   :   Fine: 0.9s (initial 1.5s), Rapid: 0.6s (initial 1.3s), Tracking: 0.4s (initial 1.3s)
  • Operating system   :   Linux
  • Display / Keyboard   :   Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / Alphanumeric keyboard / 28 keys with backlight
  • Control panel location   :   On both faces
  • Laser-pointer   :   Coaxial red laser using EDM beam
  • Optical plummet   :   Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom
  • Dust and water protection   :   IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
  • Instrument height   :   192.5mm from tribrach mounting surface
  • Size (with handle)   :   183(W)x 181(D)x 348(H)mm (On both faces)
  • Weight with battery & tribrach   :   Approx. 5.1kg (11.3lb)
  • Battery   :   Li-ion rechargeable battery BDC46C

Sokkia IM-52

Data Sheet
